| Discription |

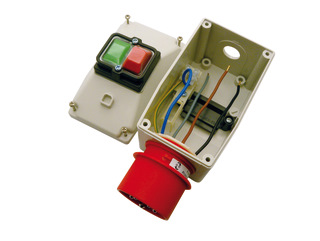

| Very sturdy plastic housing which is very easy to machine with buttons for the installation of a motor protection switch. |
| • plastic housing with phase reverse plug and cable inlet Ø 20.5 mm |
| • up to max. 16 A |
| • with cover seal and captive stainless steel screws |
| • button cover IP54 |
| • 2-pole terminal strip for N + PE (protective conductor) |
| • the motor protection switch is clipped direct on to the mounting rail |
| • optional low voltage release possible |
| • auxiliary switches not possible (see larger U housing types) |
| |
| Technical data |
|
| actuation type: |
ON / OFF buttons |
|
design operating voltage Ue:
|
max. 400V / 50 - 60Hz
|
|
design operating current Ie:
|
max. 16A
|
|
mains inlet:
|

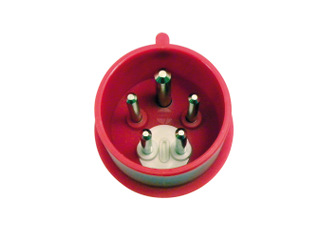

CEE 5-pol. (6h) 3P+N+E, 16A/ 400V with phase reverse
|
| connection terminals: |
1 x 10mm² - PE, 1 x 10mm² - N
|
|
cable outlet:
|
1 x Ø 20.5mm borehole
|
| protection type: |
IP 54 (protection from dust deposits and spraying water)
|
| housing: |
ABS / grey |
| version: |
mounted / closed |
| housing mounting : |
4 base jacks M5 x 68 x 68mm
|
|
dimensions (LxWxH):
|
approx. 200 x 85 x 135mm
|
|
weight:
|
approx. 400g |
 |
CE |
| plug version: |
|
|
|
plug CEE 4-pol. (6h) 16A / 400V / 50-60Hz, 3P+E
for Italy, France, Spain,Portugal
|
|
|
plug CEE 4-pol. (9h) 16A / 230V / 50-60Hz, 3P+E
for Scandinavia
|
|
|
plug CEE 3-pol. (6h) 16A / 230V / 50-60Hz, 2P+E
for Italy, Spain, Portugal ....
|
|
|

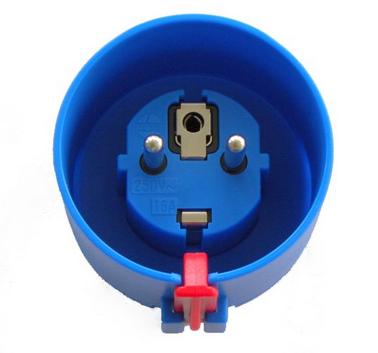

Schuko 16A / 230V / 50-60Hz, 2P+E
for Germany, France, Austria, Netherlands ....
|
|
