| Description |

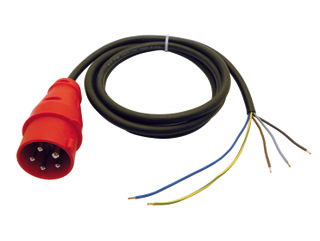

| Mains cable with all integral connectors and molded earthing contact plug. |
| • heavy duty rubber cable, for heavy duty applications |
| • plug with double earthing contact system |
| • suitable for outdoor and site use |
| • tailored to Tripus motor protection switch system |
| |
| Technical data |
|
| lmains data: |
3/N/PE, 400V / 230V / 50Hz |
|
back-up fuse (to be provided by customer):
|
max. 16A |
| mains plug: |
CEE 5-pole, 400V / 6h / 16A / 50-60Hz, 3P+N+E with phase reverse
|
| cable quality: |
H07RN-F 5G1,5 |
| cable cross-section: |
5 x 1,5mm² |
|
cable ends with wire-end claws:
|
green / yellow, blue conductor – 220mm when stripped, black, brown, grey conductors – 100mm when stripped
|
| protection type: |
IP 44 (protected from splashing water) |
| Ø cable: |
approx. 11–13mm |
| cable length: |
approx. 3m |
| weight: |
approx. 790g |
 |
CE |
| |
|
