| item number: see article variants |
|
| Information |

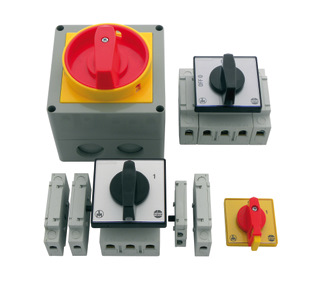

| Switches series TS are particularly suitable for main switches (switch disconnectors) and safety switches (emergency-off switches). The switches TS have been developed to the latest achievements in the field of switching devices through the application of high quality insulation materials and contacts made with silver alloys. |
| - high contact rating and long durability |
| - compact, modular expandable switch size |
| - protection against direct contact |
| - Please order the front cover separately! See accessories. |
|
| mounting modules |
| - mountable on the left and/or right side |
| - different modules can be mounted on each side |
| - fourth pole (N - pole) |
| - auxiliary contacts 1NO + 1NC |
| - auxiliary contacts 2NO |
| - PE terminal |
| - N terminal |
| |
| Technical information |
|
TS16
|
TS25
|
TS32
|
TS40
|
TS63
|
TS80
|
|
| |
| degree of protection Ui |
|
690V
|
|
rated thermal current Ith
|
|
16
|
25
|
32
|
40
|
63
|
80
|
A |
|
rated operational current Ie
|
|
AC1 - (low-inductive loads) / AC21A - (ohmic loads)
|
|
16
|
25
|
32
|
40
|
63
|
80
|
A |
|
breaking capacity
|
|
AC3 - 3 phase (squirrelcage motors)
|
220/240V
|
|
3,7
|
5,5
|
7,5
|
11
|
11
|
15
|
kW |
|
|
380/440 V
|
|
5,5
|
7,5
|
11
|
15
|
22
|
25
|
kW |
|
|
500V
|
|
7,5
|
11
|
15
|
22
|
25
|
30
|
kW |
| |
690V
|
|
7,5
|
11
|
15
|
22
|
25
|
25
|
kW |
| |
|
AC23A - 3 phase (high-inductive loads)
|
220/240V
|
|
4
|
7,5
|
9
|
11
|
15
|
18,5
|
kW |
| |
380/440V
|
|
7,5
|
11
|
15
|
18,5
|
25
|
30
|
kW |
| |
500V
|
|
9
|
15
|
15
|
22
|
30
|
37
|
kW |
| |
690V
|
|
9
|
15
|
15
|
22
|
30
|
30
|
kW |
| auxiliary contacts |
| degree of protection Ui |
|
690V
|
| rated thermal current lth |
|
|
10A
|
| rated operational current Ie |
|
AC15 (ohmic loads)
|
110V
|
|
8A
|
|
|
220 - 240V
|
|
8A
|
|
|
380 - 400V
|
|
3A
|
| |
660 - 690V
|
|
1A
|
|
mechanical durability
|
|
switching cycles
|
5x106
|
|
degree of protection front / rear side
|
|
IP 65/00
(protection from dust deposits and spraying water)
|
|
switching mounting
|
front mounting (2-hole mounting)
|
|
conductor size
|
max. 2x
|
10/6
|
25/6mm²
|
| ambient temperature |
|
|
-25 until +55°C
|
 |
|
|
constructed acc. to CE, IEC 60947,
IEC 60204, DIN EN 61058
|
| |

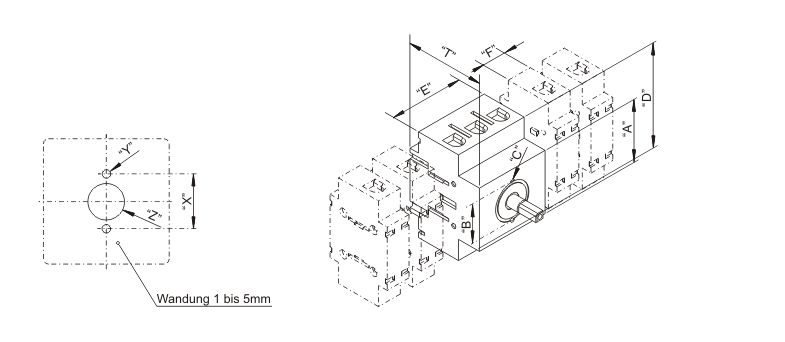

| size |
|
|
TS16
|
TS25
|
TS32
|
TS40
|
TS63
|
TS80
|
|
| front plate |
|
mm
|
48x48
|
65x65
|
| "T" |
|
mm
|
70
|
76
|
| "F" |
|
mm
|
13,5
|
18
|
|
"E"
|
|
mm
|
36
|
54
|
| "D" |
|
mm
|
70
|
76
|
| "Z" |
|
mm
|
Ø 12
|
| "X" = "B" |
|
mm
|
28
|
|
"Y"
|
|
mm
|
Ø 4,2
|
|
"A"
|
|
mm
|
45
|
| "C" |
|
mm
|
2,8
|
| wall signs |
|
mm
|
1 until 5
|
|
 |
| prices after request (min 50 pc) |
|
|
|
|
|
| Variants |
Art. No. |
amount |
|
| TS16 |
558.052.01 |
on request |
| TS25 |
558.053.01 |
on request |
| TS32 |
558.054.01 |
on request |
| TS40 |
558.055.01 |
on request |
| TS63 |
558.056.01 |
on request |
| TS80 |
558.057.01 |
on request |
|
|
|
|
|
|
|
