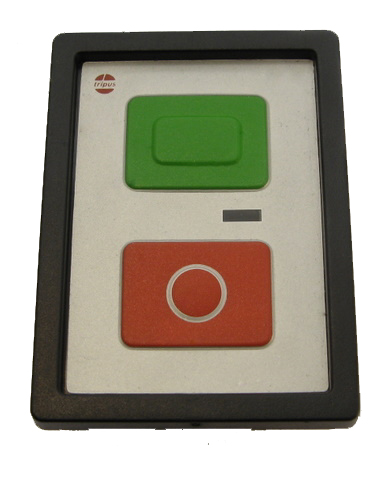

Membrane push button for control units
item number: see article variants

Applications
control units, cutters, further machines

Description
This snapping-into-place membrane keypad allows contactors to be directly piloted without transformer. The form is extremely compact and repels dirt and water.
• membrane push button green or withe (make-contact) / red or black (breakcontact)
• option indicator light

Technical data
switch function: 0–1 / 1–0 button-pressing
contacts: 1 make-contact (NO) / 1 break-contact (NC)
breaking capacity AC: 250V / 10A, 400V / 4 (2)A
breaking capacity DC: 50V / 4A
switching cycles: 50000

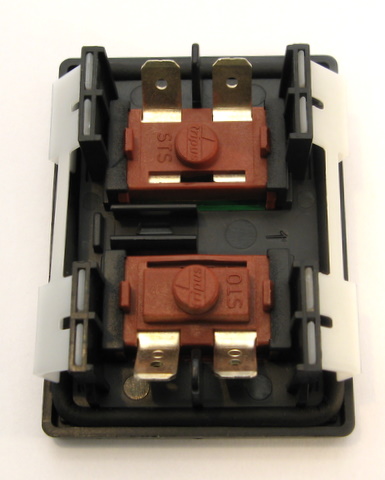

connection: flat connectors 6.3 x 0.8mm
protection class: IP 65 front side (protection from dust deposits and spraying water)
housing / color: black / silver
dimensions (LxWxH): approx. 65 x 48 x 22mm
weight: approx. 25g
mounting: latched fastening
panel cutout:

56 x 40mm for material thickness 1 – 4.5mm

Dieses Tripusprodukt wird in Europa hergestellt - Made in Europe CE




article variants Art. no. from 1 unit amount
green / red 301.110 19,52 € Shopping cart
white / black 301.110.02 19,52 € Shopping cart
(incl. of 19% VAT, plus shipping and handling)
