Power distribution box SVB 8

Power distribution box  SVB 8 CEE plug 3P+N+E (16A) Schuko recessed sockets 2P+E
item number: See the variants
Applications
Perfect for construction sites, road works, events, schools, light -and sound-equipment, mobile market stands etc.

Description

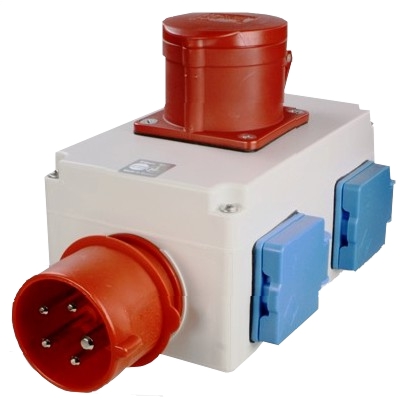

The power distribution box SVB 8 with CEE plug and 3x 230V socket plus 1x CEE 16A socket is water resistant and made of durable and robust plastic. Every socket has a cover. The box converts your regular CEE 16 Ampere CEE three-phase AC socket to three fully, with 16 Ampere loadable 230V sockets outlets with an additional CEE socket. 3600 Watt power is available on each 230V socket.

Total output power is 10800 Watt on the 230V sockets together with the CEE socket. This box is ideal for events, marketstands, schools, sound- and light equipment etc. and all other 230V / 400V high power applications.

Technical data
line data Ue: 3 / N / PE, 400V / 50Hz
power: 3x 400V / 16A + 3x 230V / 16A / 3600W

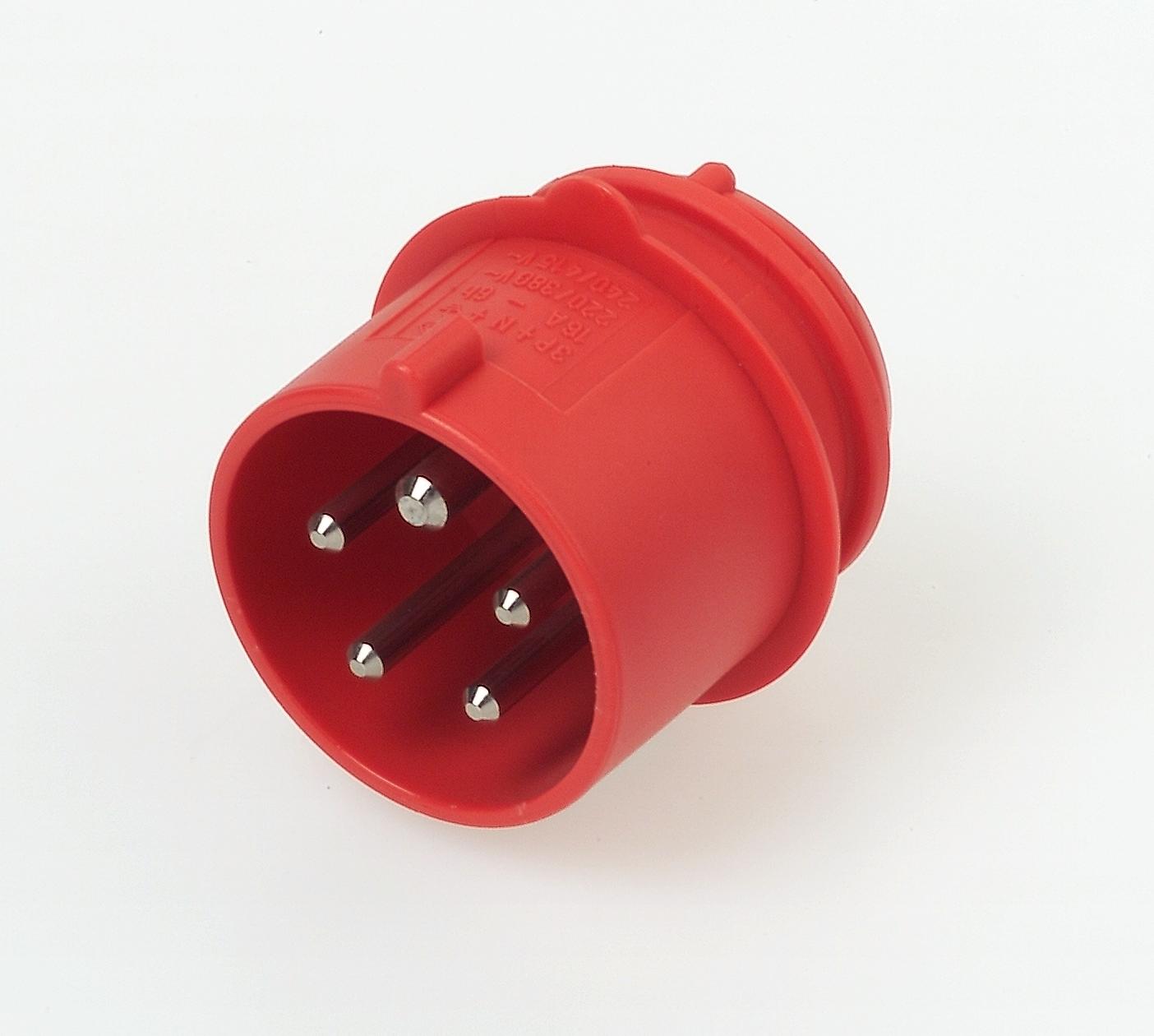

input: CEE 5-pole plug, 16A, 3P+N+E, 6h

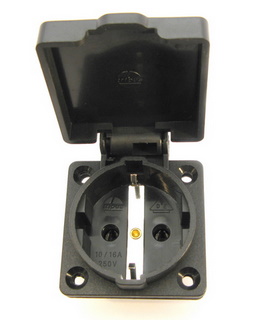

output: 3x socket 2P+E, 16A / 230V + 1x CEE socket 3P+E+N, 16A / 400V
protection class: IP 44 (spray-water proof)
mounting: 4 screw-down bushings, M5 – 68 x 68mm
housing material: ABS
housing color: grey
dimensions (LxWxH): approx. 235 x 135 x 150mm
weight: approx. 850g
Dieses Tripusprodukt wird in Europa hergestellt  - Made in Europe by TRIPUS



Variants Art. no. from 1 unit amount
power distribution box SVB 8 204P925 73,00 € Shopping cart
(incl. of 19% VAT, plus shipping and handling)
