| item number: see article variants |
 |
| Information |

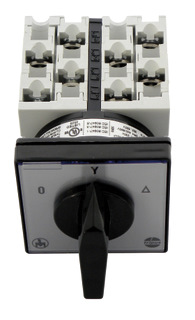

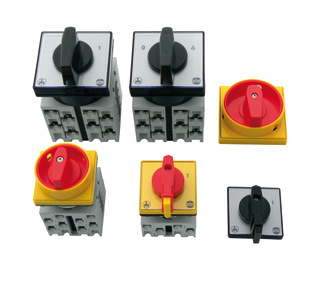

| Rotary cam switches series TX is the new series of rotary cam switches protected
from inadvertent touch. They have been designed on modern principles taking into consideration the latest achievements in the field of switching devices and using the best insulation and contact materials (silver alloys). They are distinguished for their high breaking capacity, electrical and mechanical durability and small dimensions.
|
| - high contact rating and long durability |
| - compact switch size |
| - protection against direct contact |
| - Please order the front cover separately! See accessories. |
| |
| Technical information |
|
TX16
|
TX20
|
TN32
|
TX40
|
|
| |
| degree of protection Ui |
|
690V
|
|
rated thermal current Ith
|
|
16
|
20
|
32
|
40
|
A |
|
rated operational current Ie
|
|
AC1 - (low-inductive loads) / AC21A - (ohmic loads)
|
|
12
|
20
|
32
|
40
|
A |
|
breaking capacity
|
|
AC3 - 3 phase (squirrelcage motors)
|
220/240V
|
|
3,5
|
3,7
|
7,5
|
7,5
|
kW |
|
|
380/440V
|
|
4,5
|
5,5
|
11
|
15
|
kW |
|
|
500/690V
|
|
5,5
|
5,5
|
11
|
15
|
kW |
|
|
|
AC23A - 3 phase (high-inductive loads)
|
220/240V
|
|
3,7
|
4,0
|
8
|
9
|
kW |
|
|
380/440V
|
|
6,5
|
7,5
|
15
|
18,5
|
kW |
|
|
500/690V
|
|
7,5
|
7,5
|
15
|
15
|
kW |
|
mechanical durability
|
|
switching cycles
|
|
|
5x106
|
|
degree of protection
front / rear side
|
|
|
IP 65/00
(protection from dust deposits and spraying water)
|
|
switching mounting
|
|
|
front mounting (4-hole mounting)
|
|
conductor size
|
max. 2x
|
|
2,5/2,5
|
2,5/2,5
|
10/6
|
10/6
|
mm² |
| ambient temperature |
|
|
-25 until +55°C
|
 |
|
|
constructed acc. to CE, IEC 60947,
IEC 60204, DIN EN 61058
|
| |

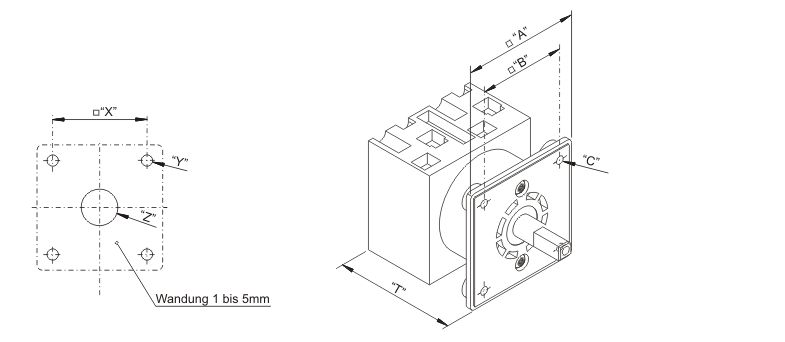

| size |
|
|
TX16
|
TX20
|
TX32
|
TX40
|
|
| front plate |
|
mm
|
48x48
|
48x48
|
65x65
|
65x65
|
|
| "T" |
|
mm
|
65
|
65
|
84
|
84
|
|
| "Z" |
|
mm
|
Ø 12
|
Ø 12
|
Ø 14
|
Ø 14
|
|
| "X" = "B" |
|
mm
|
36x36
|
36x36
|
48x48
|
48x48
|
|
|
"Y"
|
|
mm
|
Ø 4,3
|
|
"A"
|
|
mm
|
48x48
|
48x48
|
65x65
|
65x65
|
|
| "C" |
|
|
M4
|
| wall signs |
|
mm
|
1 until 5
|
|
 |
| prices after request (min 50 pc) |
|
|
|
|
