Front element emergency stop push button

Emergency stop mushroom push button adapter for emergency stop mushroom push button emergency stop sign break-contact (NC) red Front element push button with adapter and contact elements
item number: 557.225 + 557.222

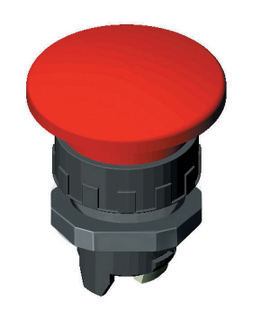

Description emergency stop
• emergency stop mushroom push button for front fitting with fixing nut and adapter for snapping on the contact elements
• mushroom button with turn-to-reset
• turn clockwise for reset
• plastic construction


Technical data
protection class:  IP 65 (protection from dust deposits and spraying water)
mushroom push button:  red, Ø 40mm, height 30mm
mounting depth:  27mm
dimensions (LxWxH):  approx. 40 x 40 x 58mm
weight:  approx. 34g
mounting:  mounting fixing nut
panel cutout:  Ø 22mm
Dieses Tripusprodukt wird in Europa hergestellt  - Made in Europe

Description contact elements

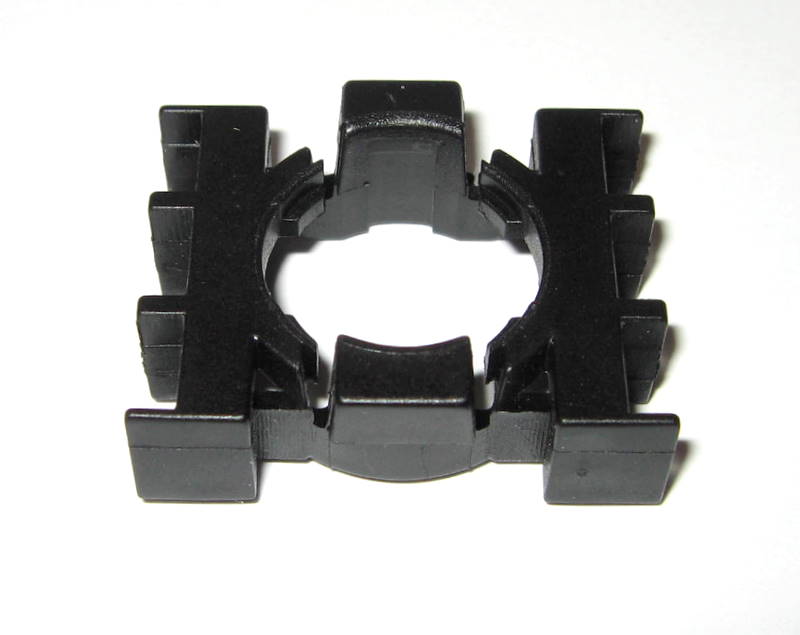

• the contact elements are simply snapped onto the front elements adapter
• stackable
• can be combined with break-contact switch element

Technical data
switch function:  0–1 button-pressing
contacts:  1 make-contact (NO) or break-contact (NC)
breaking capacity AC-15:  24V / 10A - 230V / 4.5A - 400V / 2.6A
breaking capacity DC-13:  24V / 5A - 220V / 0.6A
connection:  screw terminals
protection class:  IP 20 (protection from dust deposits and spraying water)
color:

 green (NO) or red (NC)

 Schliesser grün    Öffner rot
dimensions (LxWxH):  approx. 38 x 10 x 20mm
weight:  approx. 9g
mounting:  plastic latching
constructed acc. to:  EN 60947-5-1, IEC947-5-1
Dieses Tripusprodukt wird in Europa hergestellt  - Made in Europe



article variants article-no. from 1 unit amount
emergency stop 557.225 9,50 € Shopping cart
adapter 557.222 3,50 € Shopping cart
make-contact (NO) green 557.222.01 4,50 € Shopping cart
break-contact (NC) red 557.222.02 4,50 € Shopping cart
emergency stop sign 352.807 3,00 € Shopping cart
(incl. of 19% VAT, plus shipping and handling)
